I meant to note that I did not test one-way SPI (MOSI only, MISO only). I don't have a test case for that, so feel free to wait for someone who does/can. I could hook up the Saleae, but not sure that is a valid test...

I meant to note that I did not test one-way SPI (MOSI only, MISO only). I don't have a test case for that, so feel free to wait for someone who does/can. I could hook up the Saleae, but not sure that is a valid test...

I think a sufficient test for MISO is to jumper the MISO pin high and see if you read 1's and then hold it low and see if you read 0's. For MOSI you could use the Saleae and just send data, or even just send it to an LED: all 1's and all 0's.

It's equally important just to test that supplying None for either pin doesn't crash.

One last note that I missed... Queue Where is my mind?

I removed the passing of HSPI arguments, since it never passed anything but that. I didn't see anywhere else that it was needed for busio.SPI either.

@dhalbert

It's equally important just to test that supplying None for either pin doesn't crash.

>>> import board, busio, digitalio
>>> spider = busio.SPI(board.SCK, board.MOSI, MISO=None)
>>> spider.try_lock()
True
>>> spider.configure(baudrate=100000)
>>> gp = digitalio.DigitalInOut(board.GPIO12)
>>>

That is what I ran for both to check construction and pin lockout.

I can run those with the Saleae. Just wasn't sure if that would pass muster for a real-world test.

I think those tests are fine. I tested bidirectional SIPI just by jumpering MOSI to MISO.

I mean I think testing with the Saleae woudl be fine for actually see that levels show up.

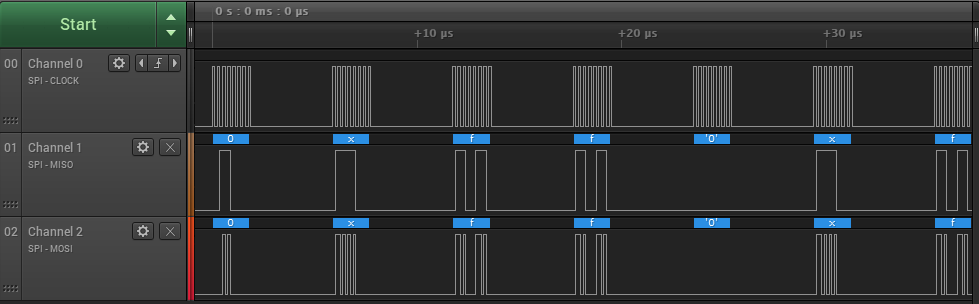

MOSI Only:

>>> import busio, board
>>> spi = busio.SPI(clock=board.SCK, MOSI=board.MOSI, MISO=None)
>>> spi.try_lock()
True
>>> buffer = bytearray(b'0xff\0xff\0xff')
>>> spi.write(buffer)
>>>

I couldn't get MISO only to register anything. I tried using a gpio just set as high/low, as well as another board connected as a SPI Master. Reading SPI tea-leaves is not my forté.

Hi Guys,
it looks like i can find the answer for my problem here:) on esp8266-12e i'm using TFT module via HSPI however i'm using unidirectional communication thus MISO (GPIO12 aka D6) is not connected to TFT. The problem is i need to use GPIO12 to control TFT LED pin responsible for backlight control - thus one is out of SPI protocol, just set H to turn the backlit on, L to turn it off).
Initially i thought i damaged PGIO12 as even if i set its mode to OUTPUT (yes, i'm using Arduino IDE) i can't see any change on the phisical pin when giving commands to go HIGH or LOW.
Could you explain me if and how can i 'unlock' GPIO12 to use is as general purpouse pin? I tried to understand what you guys have wrinnet here but no luck:)
Thanks!

it looks like i found solution: first i've initiated SPI and after that i've set GPIO mode to OUPUT. Now i can control this pin as normal and TFT works as normal as well:)

It doesn't work if you set GPIO12 as input. Any solution to that?
