[Console/Table] Colspan is removed on Tableoutput, if Content is loonger then ColumnMaxwith and ColumnMaxwith is ignored, if formated Content is too long #30701
Description
Symfony version(s) affected: v4.2.4
Description
In the project useragent-parser-comparison we compare the results of different useragent parsers. To show the differences we use the table helper from symfony console.
Because the useragents and the differences may be very long, the table rows often need 2 or 3 lines in the console output.
To make the result better readable I want to limit the column width.
The result is, that the colspan is ignored, if the content is longer than set column max length. Also the cell content does not break correctly into a new line, if the content is formatted.
How to reproduce
the used command (in the original code, the table is filled dynamically)
class Analyze extends Command
{
protected function configure(): void
{
$this->setName('analyze')
->setDescription('Analyzes the data from test runs')
->setHelp('');
}
protected function execute(InputInterface $input, OutputInterface $output): int
{
$table = new Table($output);
$table->setColumnWidth(0, 50);
$table->setColumnMaxWidth(0, 50);
$table->setColumnWidth(1, 50);
$table->setColumnMaxWidth(1, 50);
$table->setColumnWidth(2, 50);
$table->setColumnMaxWidth(2, 50);
$table->setStyle('box');
$table->setHeaders([
[new TableCell('UserAgent', ['colspan' => 3])],
[new TableCell('Browser'), new TableCell('Platform'), new TableCell('Device')],
]);
$rows = [];
$rows[] = [new TableCell('Mozilla/5.0 (Macintosh; U; Intel Mac OS X; en; rv:1.8.1.11) Gecko/20071128 Camino/1.5.4', ['colspan' => 3])];
$rows[] = [
new TableCell('name: <fg=white;bg=green>camino</> <fg=white;bg=red>mozilla50macintoshuintelmacosxenrv18111gecko</> version: <fg=white;bg=green>1.5</> <fg=white;bg=red>20071128</> '),
new TableCell(''),
new TableCell(''),
];
$rows[] = new TableSeparator();
$rows[] = [new TableCell('Mozilla/5.0 (X11; Linux i686; rv:7.0.1) Gecko/20111106 IceCat/7.0.1', ['colspan' => 3])];
$rows[] = [
new TableCell('name: <fg=white;bg=green>firefox</> <fg=white;bg=red>mozilla50x11linuxi686rv701gecko</> version: <fg=white;bg=green>7.0</> <fg=white;bg=red>20111106</> '),
new TableCell(''),
new TableCell(''),
];
$rows[] = new TableSeparator();
$rows[] = [new TableCell('Mozilla/5.0 (compatible; YandexBot/3.0; +http://yandex.com/bots)', ['colspan' => 3])];
$rows[] = [
new TableCell('name: <fg=white;bg=green>yandexbot</> <fg=white;bg=red>mozilla50compatibleyandexbot</> version: <fg=white;bg=green>3.0</> <fg=white;bg=red>3.0;</> '),
new TableCell(''),
new TableCell(''),
];
$rows[] = new TableSeparator();
$rows[] = [new TableCell('Googlebot-Video/1.0', ['colspan' => 3])];
$rows[] = [
new TableCell('name: <fg=white;bg=green>googlebotvideo</> <fg=white;bg=red>googlebot</> '),
new TableCell(''),
new TableCell(''),
];
$table->setRows($rows);
$table->render();
return 0;
}
}the result is:
┌────────────────────────────────────────────────────┬────────────────────────────────────────────────────┬────────────────────────────────────────────────────┐
│ UserAgent │
┌────────────────────────────────────────────────────┬────────────────────────────────────────────────────┬────────────────────────────────────────────────────┐
│ Browser │ Platform │ Device │
├────────────────────────────────────────────────────┼────────────────────────────────────────────────────┼────────────────────────────────────────────────────┤
│ Mozilla/5.0 (Macintosh; U; Intel Mac OS X; en; rv: │ │ │
│ 1.8.1.11) Gecko/20071128 Camino/1.5.4 │ │ │
│ name: camino mozilla50macintoshuintelmacosxenrv18111gecko versi │ │ │
│ on: 1.5 20071128 │ │ │
├────────────────────────────────────────────────────┼────────────────────────────────────────────────────┼────────────────────────────────────────────────────┤
│ Mozilla/5.0 (X11; Linux i686; rv:7.0.1) Gecko/2011 │ │ │
│ 1106 IceCat/7.0.1 │ │ │
│ name: firefox mozilla50x11linuxi686rv701gecko version: 7.0 20111106 │ │ │
├────────────────────────────────────────────────────┼────────────────────────────────────────────────────┼────────────────────────────────────────────────────┤
│ Mozilla/5.0 (compatible; YandexBot/3.0; +http://ya │ │ │
│ ndex.com/bots) │ │ │
│ name: yandexbot mozilla50compatibleyandexbot version: 3.0 3.0; │ │ │
├────────────────────────────────────────────────────┼────────────────────────────────────────────────────┼────────────────────────────────────────────────────┤
│ Googlebot-Video/1.0 │
│ name: googlebotvideo googlebot │ │ │

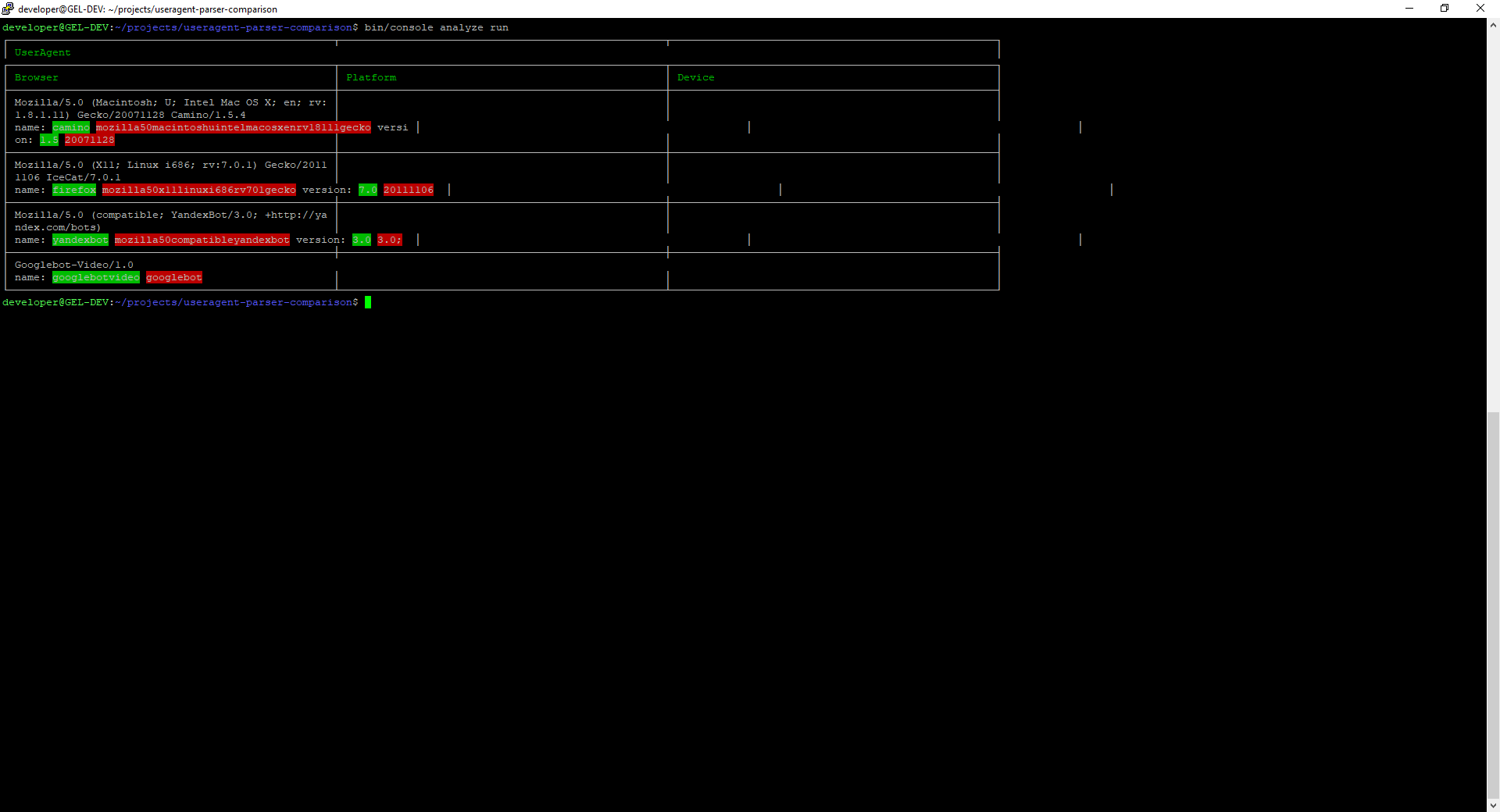

└────────────────────────────────────────────────────┴────────────────────────────────────────────────────┴────────────────────────────────────────────────────┘the output as image to show the colors:
