ax.fill broken for log scale and values below zero
When using ax.fill_between in log scale plots with y-values below zero, the result looks broken and areas are filled that should not be filled
Code for reproduction
import numpy as np
import matplotlib.pyplot as plt
xdata=np.arange(0,10,0.01)
ydata = np.exp(-xdata)
edata = 0.2*(10-xdata)*np.cos(5*xdata)*np.exp(-xdata)
fig, ax = plt.subplots()
plt.yscale('log')
ax.fill_between(xdata, ydata - edata, ydata + edata)
plt.savefig("test.png")

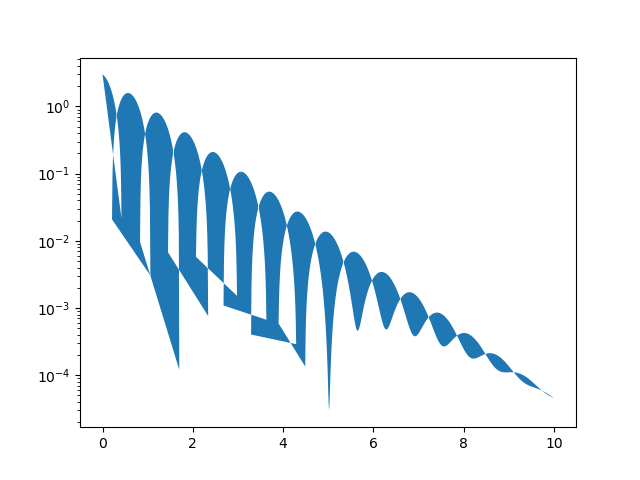

Actual outcome
Expected outcome
The correct example has been generated with matplotlib-2.0.2-1
Probably related: #8623
How to deal with invalid values in log scale plots is certainly a matter of definition. However, it should never happen that areas are filled that should not be filled, as it is the case in the example above.
Matplotlib version
- Operating system: arch linux
- Matplotlib version: 2.1.0-1
- Matplotlib backend: Qt5Agg
- Python version: 3.6.2
- Other libraries: numpy version: 1.13.3-1
Everything installed using the package manager of arch linux.
